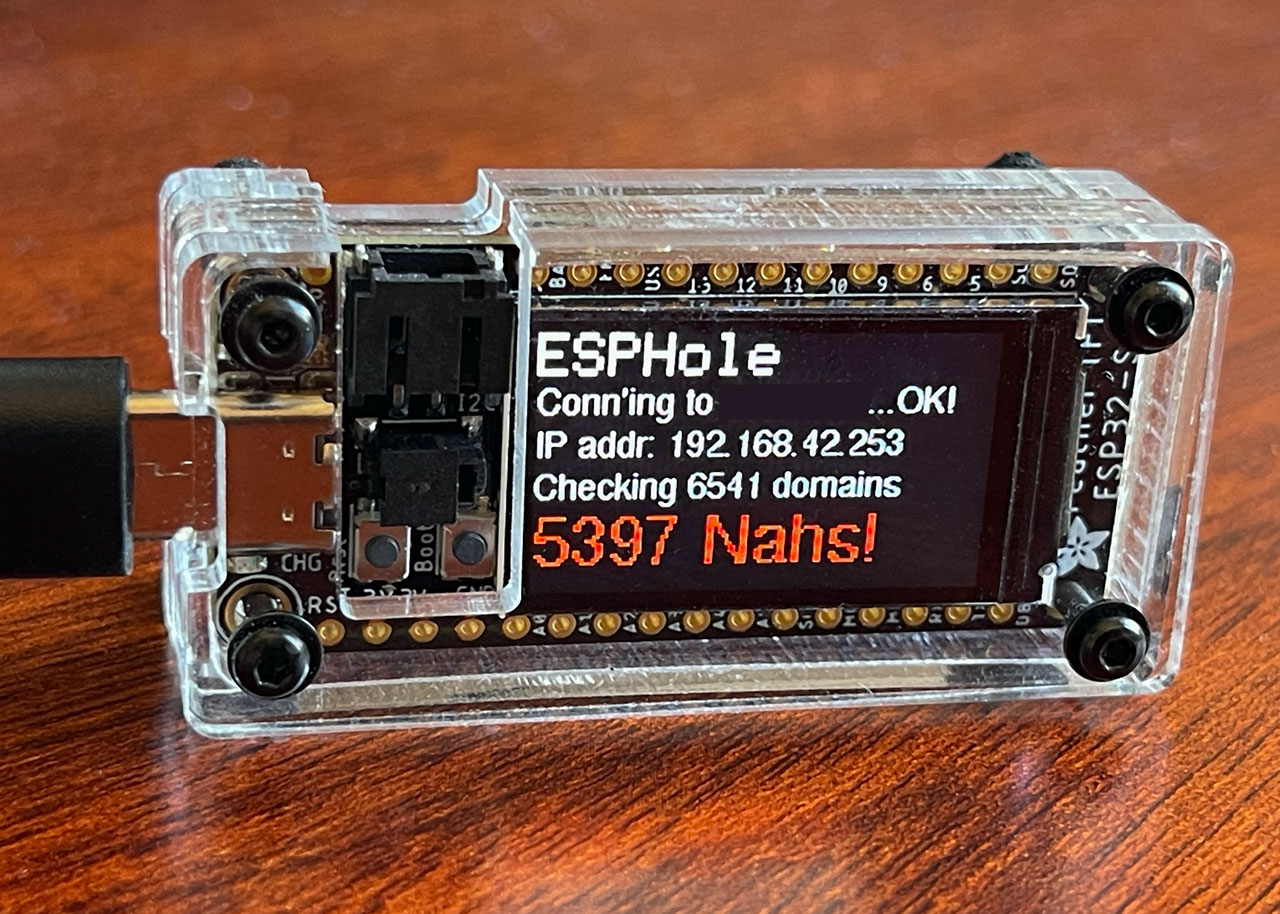

I made a DNS proxying ad blocker using ESP32-S2 with a custom laser-cut acrylic case. This is based on projects by “rubfi” and John Park, who are entirely responsible for the code.

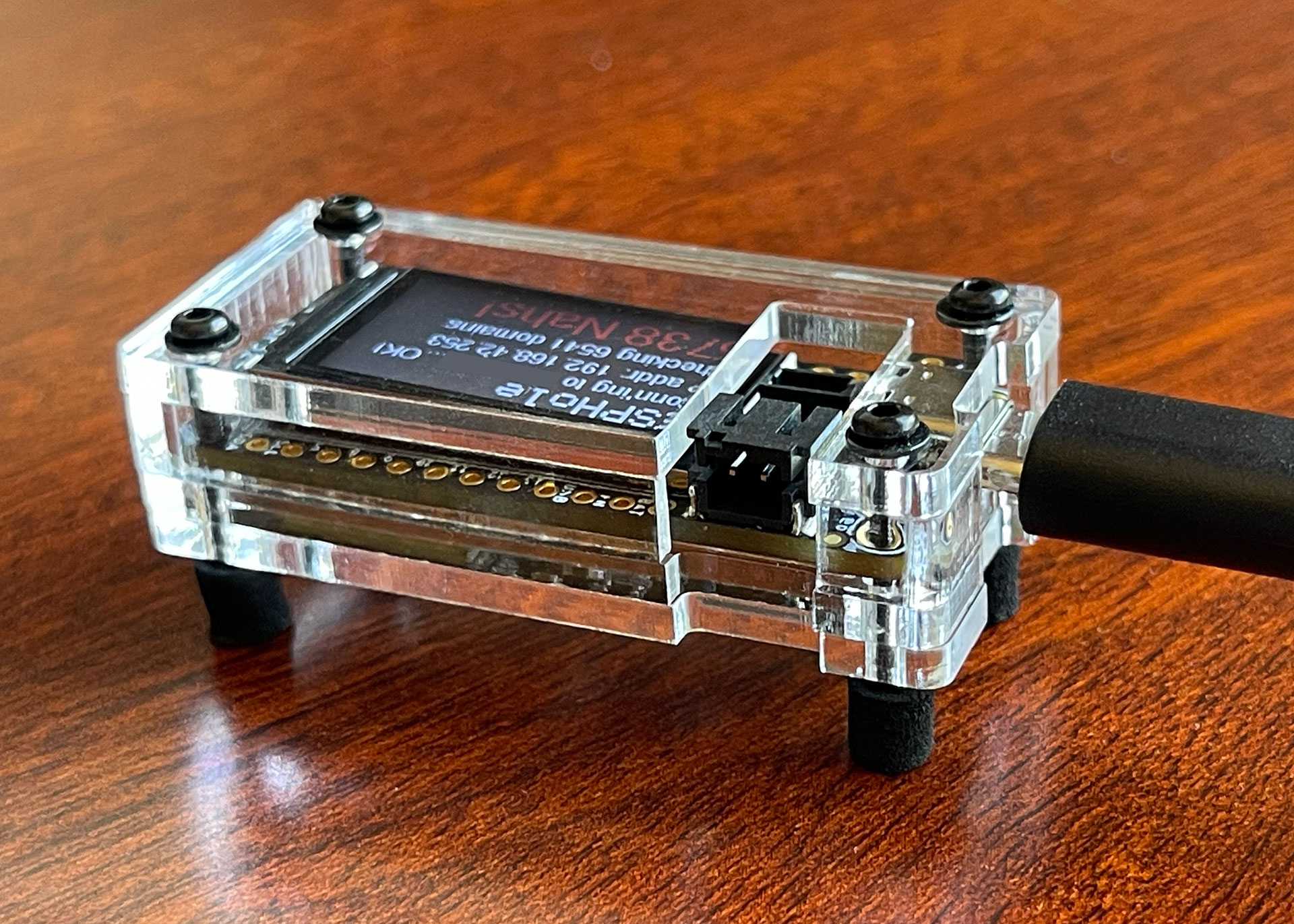

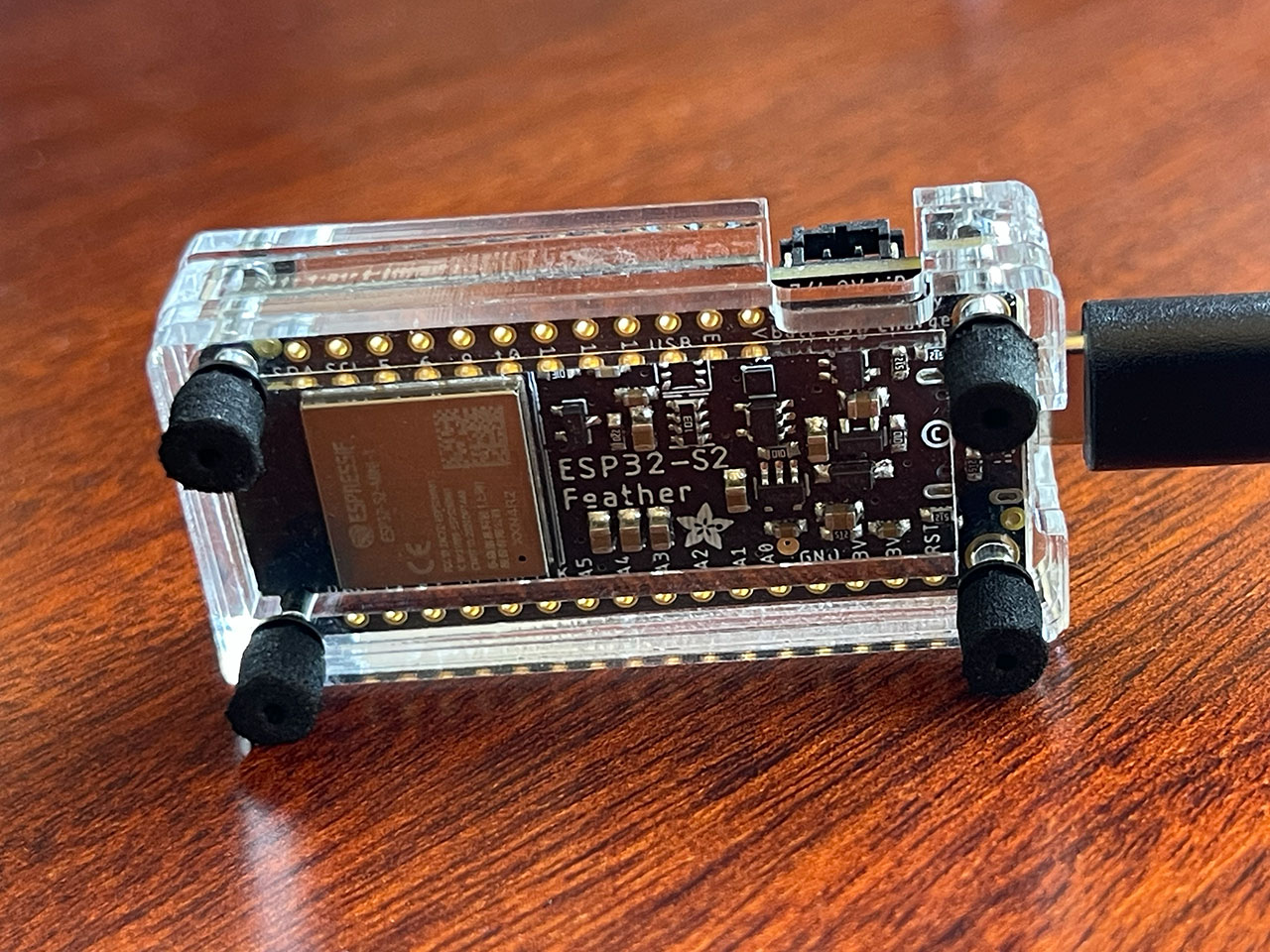

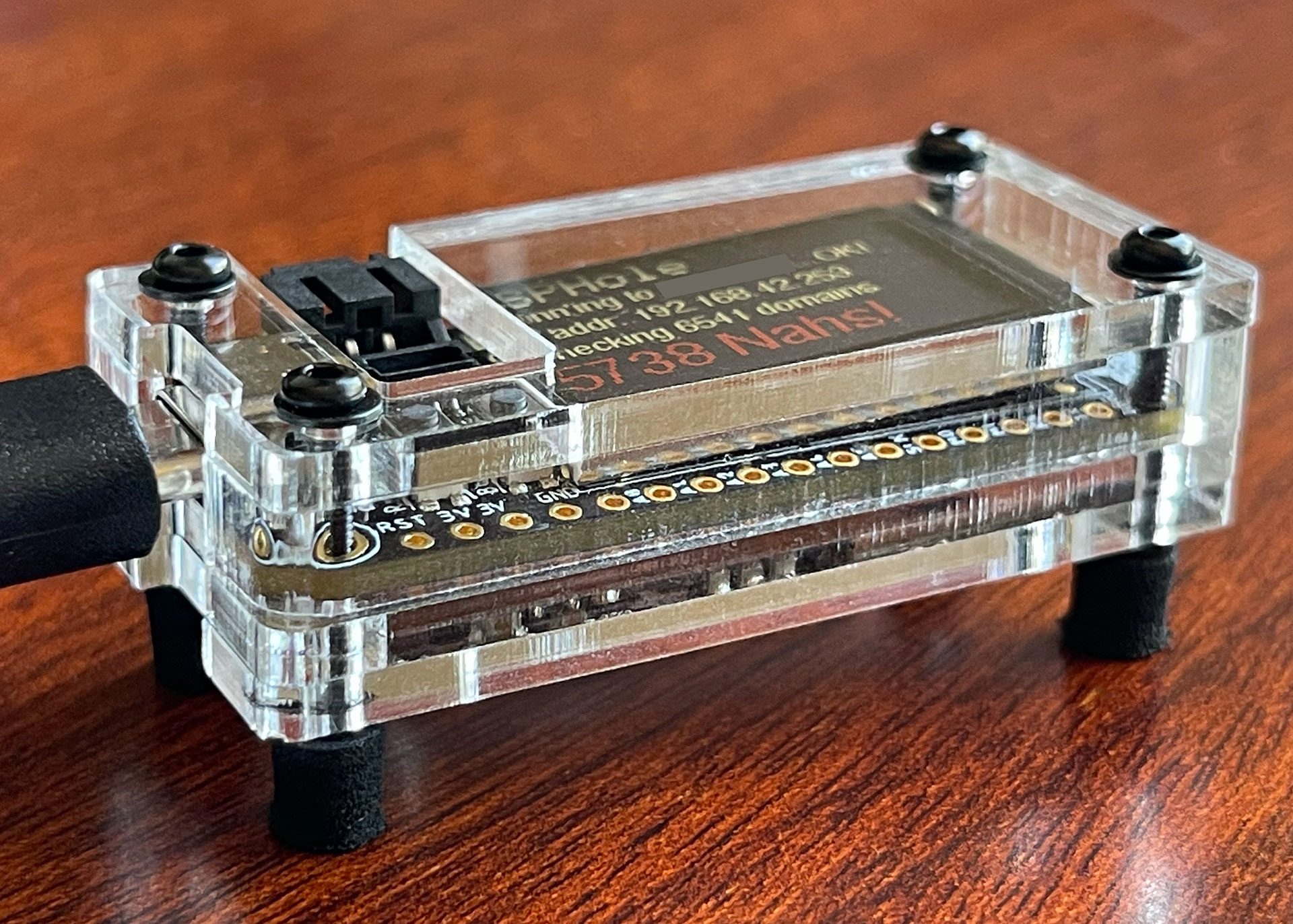

The case is inspired by one from dsacademy that I modified for my networked USB flash drive. I designed this case from scratch to fit the Adafruit ESP32-S2 TFT Feather boards, which have a nice little integrated color display panel. I laser cut the pieces from 3mm and 6mm thick clear acrylic. I made some little EVA foam feet to cover the screw ends to avoid scratching up surfaces. The case assembles with four 20mm M2 screws with washers and nuts.1
Below is the design file for the case if you want it for personal use. If you want to do anything else with it (e.g., sell finished cases or incorporate it in your commercial project), please contact me for permission first.
Short assembly video:
This file is for personal, non-commercial use only. Note that, by referencing this, you are agreeing to release any variations you create under identical terms.
1 Amazon Associates link benefits a local arts organization.
